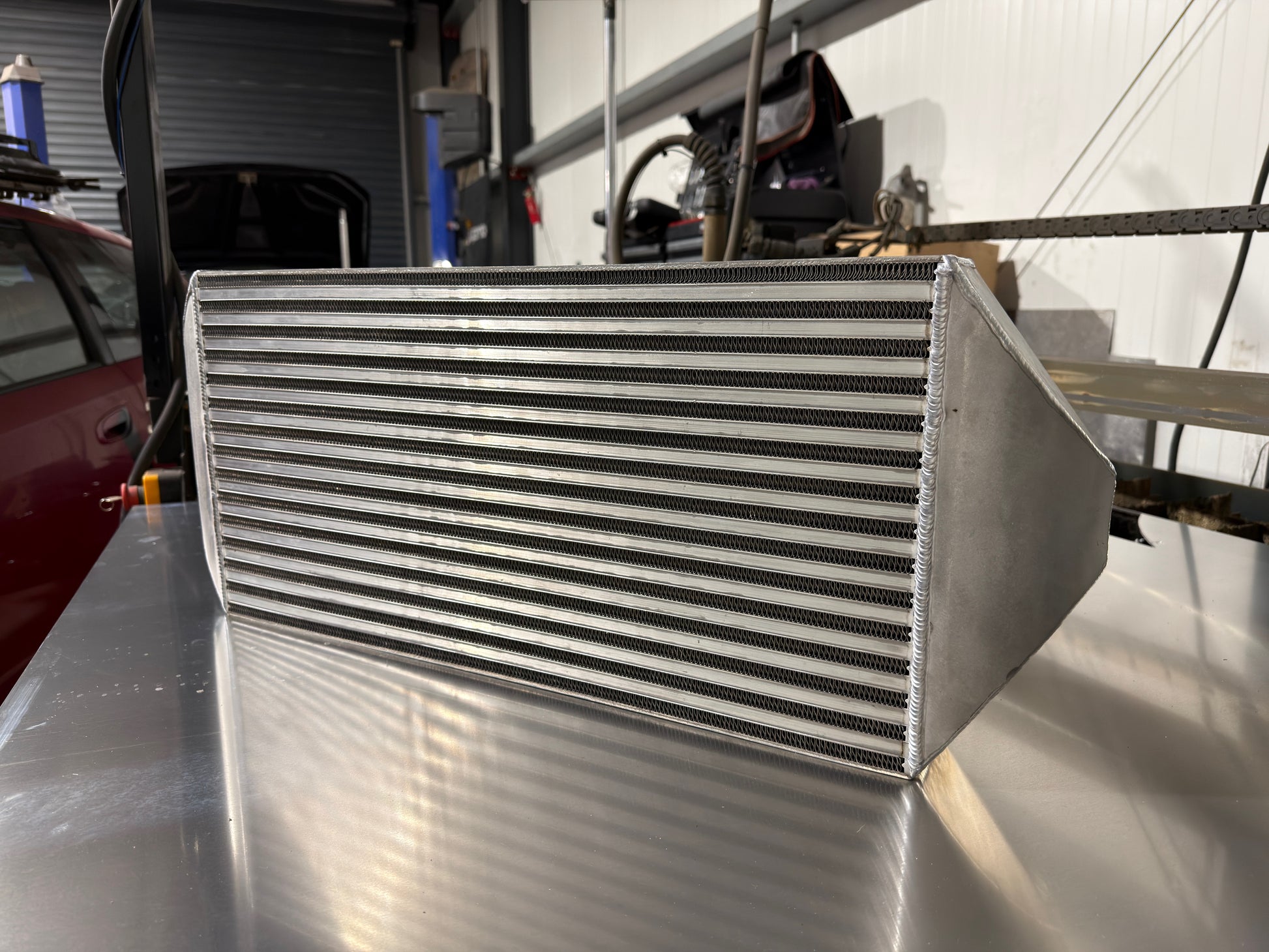

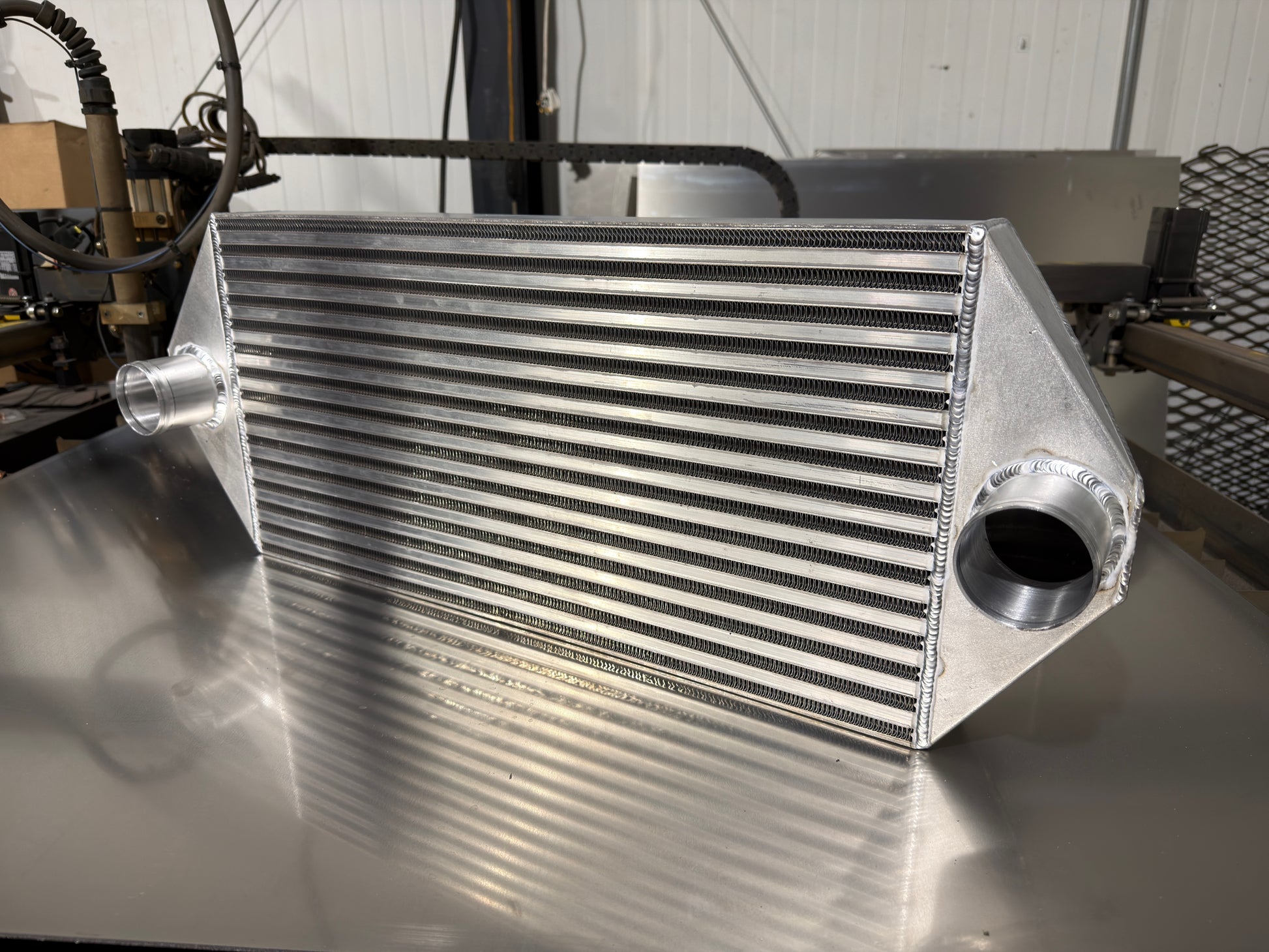

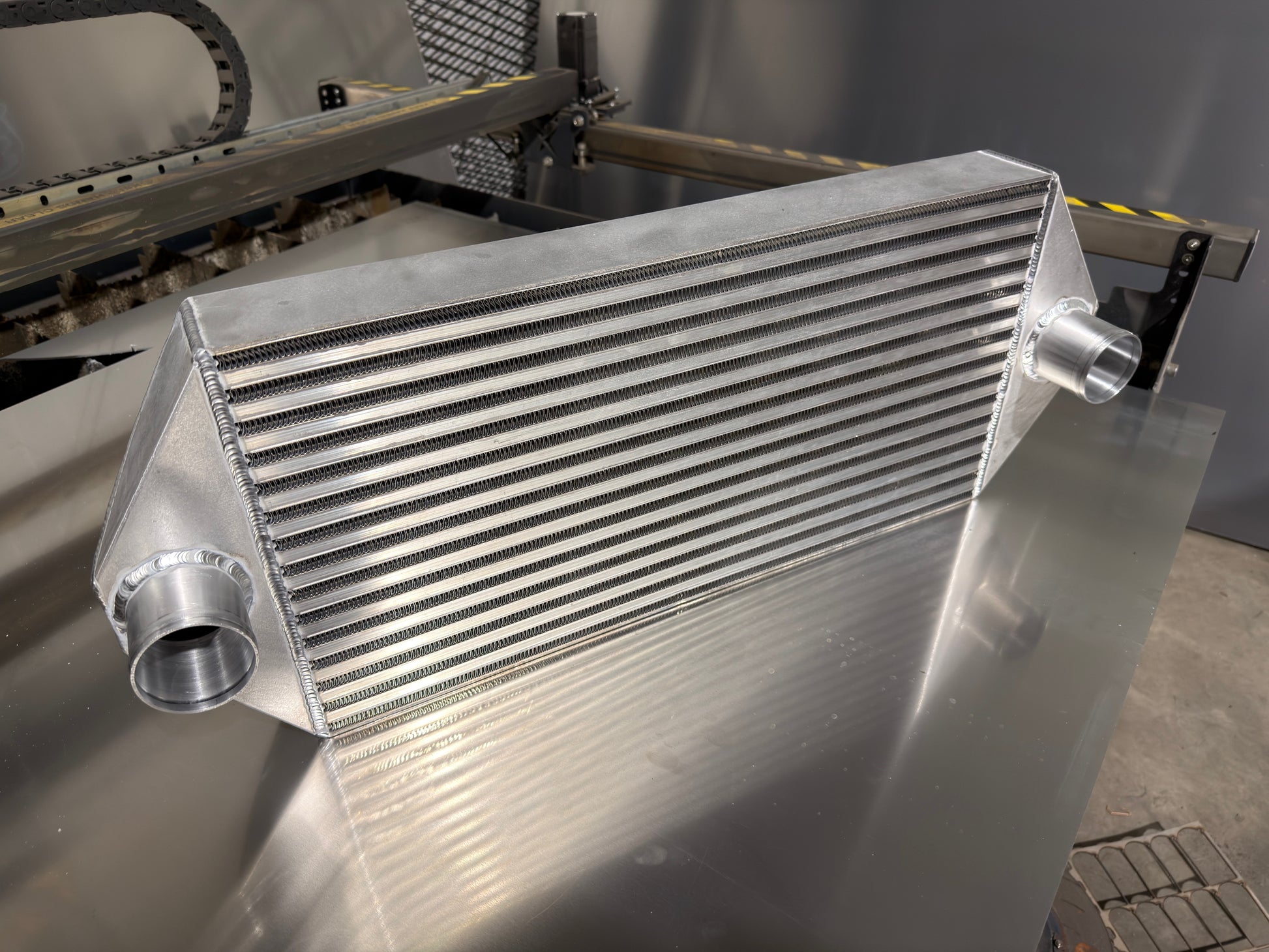

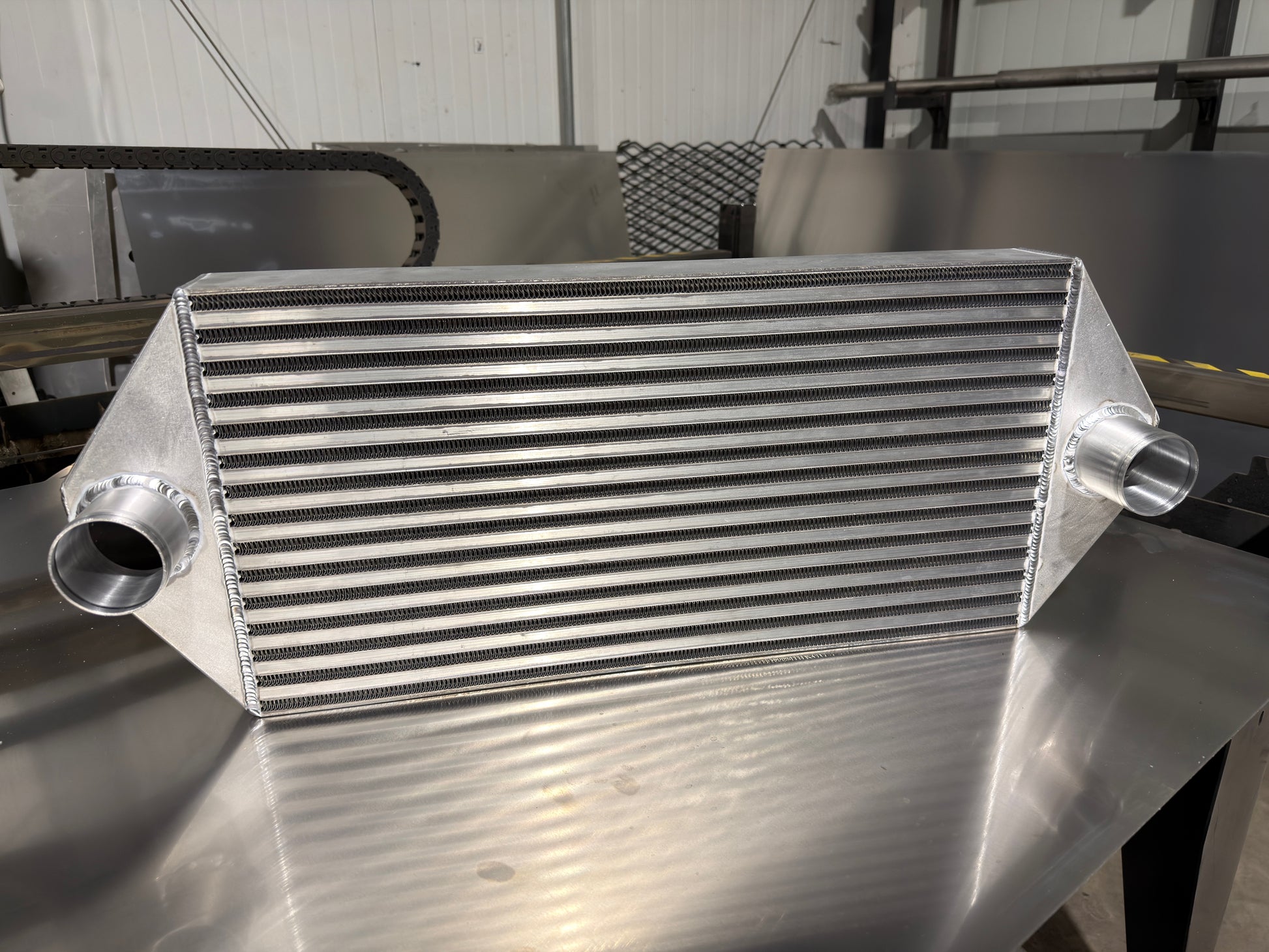

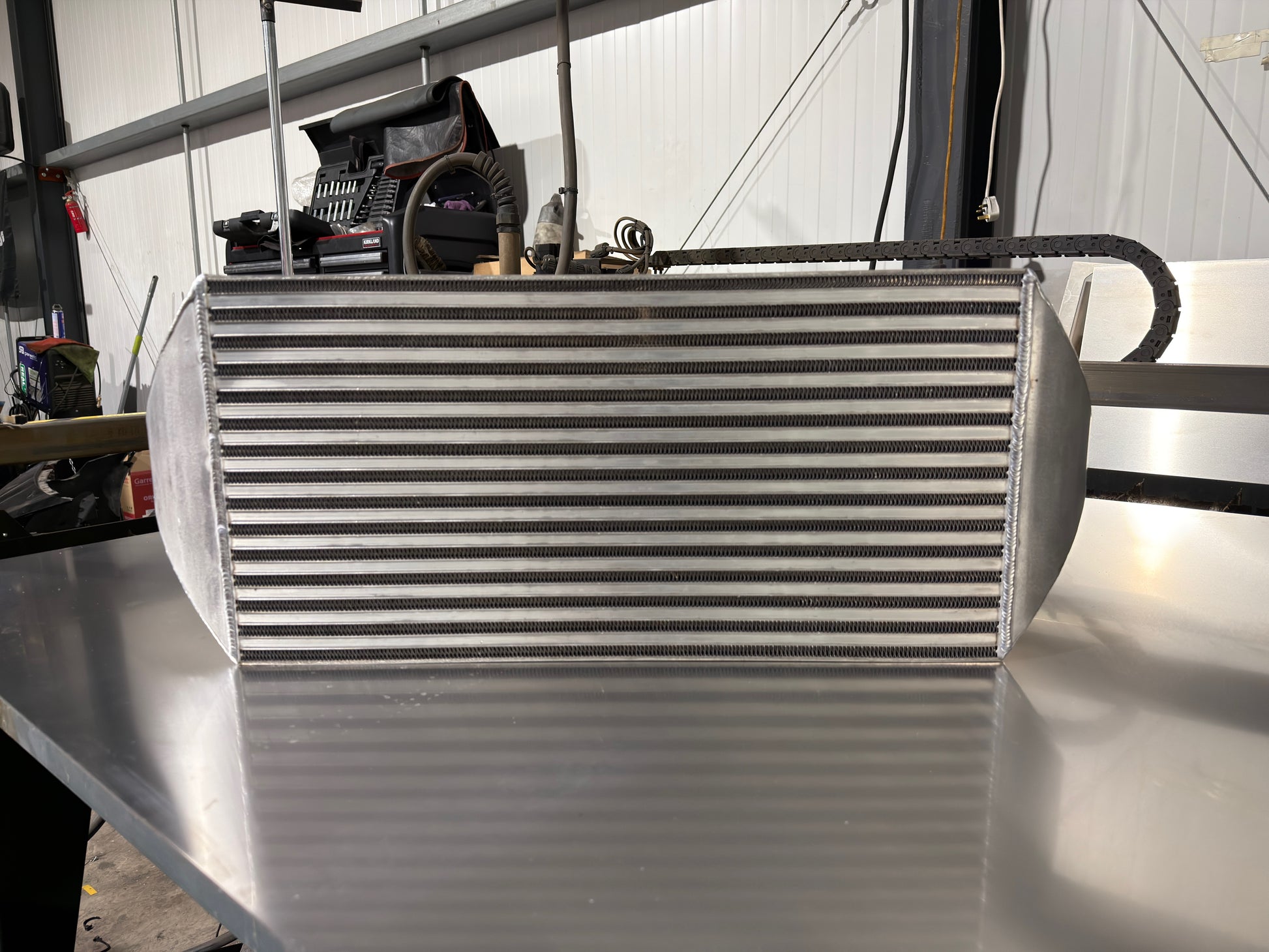

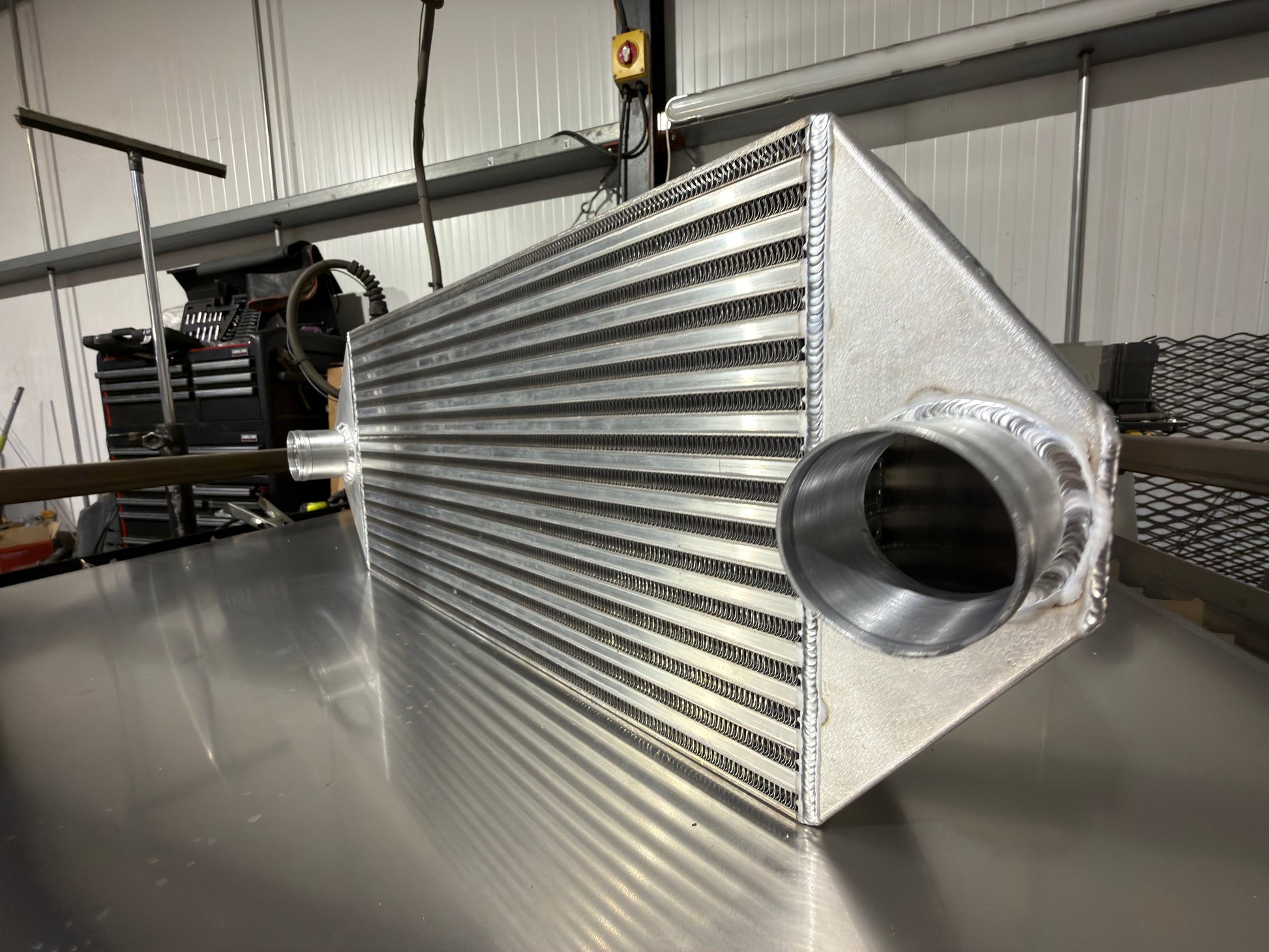

Experience superior cooling performance with the LA Fabrication Racing Dual Backdoor Front Mount Intercooler, engineered for serious enthusiasts and track competitors. This premium unit features a robust 76mm thick bar-and-plate core with precision-staggered fins that maximize heat rejection while maintaining optimal airflow and minimal pressure drop.
Hand-crafted from 5251 aluminum with full Tig welding, our custom end tanks are built to exacting standards for durability and reliability. The intercooler's compact front-mount design fits seamlessly between frame rails, making it ideal for both street and racing applications with minimal charge pipe routing required.
Key Features:
400HP-800HP rated capacity
610mm x 305mm x 76mm core / 760mm W x 305mm H x 76mm D overall
64mm inlet and outlet with bead rolled tube ends
Pre-installed M8x1.25mm aluminum mounting bungs
LA Fabrication logo stenciled core face
Compatible with Honda/Acura platforms and potentially more
Optional Vibrant Performance/Quick release clamps available for enhanced charge pipe security. Pair this with our LA Fabrication Tucked Radiator for a complete cooling solution set up.
Contact us before ordering for custom flange welding options.
