Honda K20/K24 - K-Series 1000cc Bosch Injectors

Enhance your Honda K20/K24 (K-Series) engine's performance with the impressive Bosch Injector upgrade!

These injectors are designed with performance and Quality in mind whist being able can handle power levels of up to 550/600HP when used with a suitable base fuel pressure.

One notable advantage is their excellent responsiveness at low pulse widths, which ensures smooth and stable idle mapping without compromising Air-Fuel Ratio (AFR) stability.

The injector's unique multi-hole orifice plate design facilitates a highly efficient fuel spray, leading to improved combustion. This results in reduced smoke production, especially during higher fuel mixtures, and maximizes overall fuel efficiency.

Installation is straightforward as they are a direct fit, but it's essential to change the connectors to Bosch Power Timer (plugs and pins are provided). Taking care during installation is vital to achieve optimal performance.

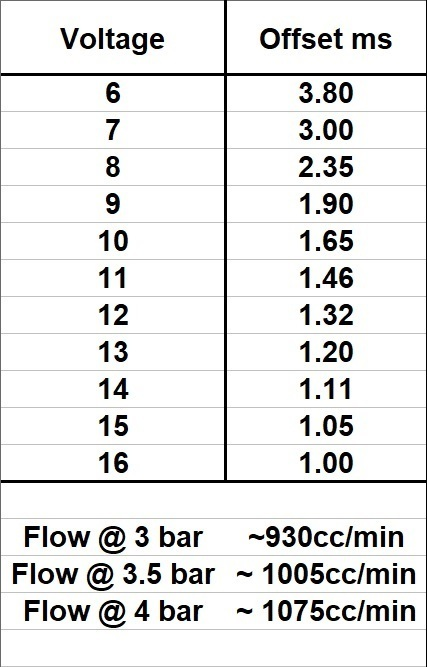

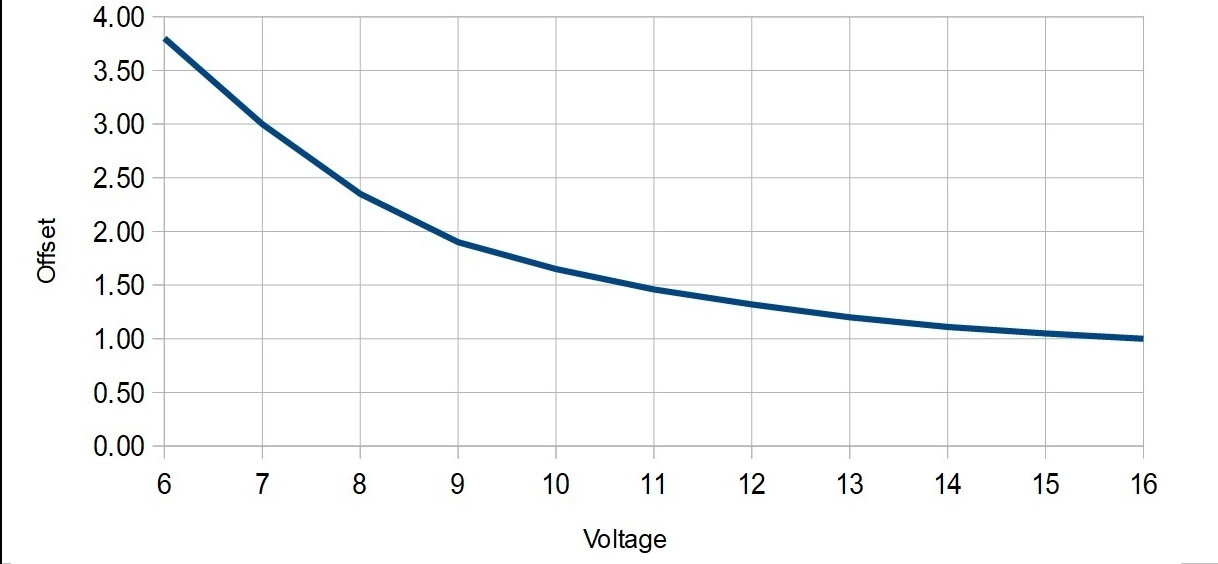

For more technical details, including flow and dead time data, refer to the pictures provided above. Upgrade your Honda K-Series engine with these Bosch Injectors and experience the perfect blend of power and efficiency!

Specifications:

• Size: 980cc (92 lb/hr) @ 3 bar and 1150cc (105 lb/hr) @ 4 bar
• Length: EV14S
• Type: EV14K body with EV14S sleeve and Bosch EV1 / Jetronic plug
• Impedance: 12.5 ohms
• Plug: Bosch EV1 Jetronic / Minitimer
• Top O-Ring: 14mm
• Spray Pattern: Wide Cone
• Spray Direction: Straight
• E85 Safe: Yes

Whats Included:

Injectors x4

Adaptors x4

Connectors ( Bosch Power Timer & Pins)
